Disposable Plaster Trap Specifications

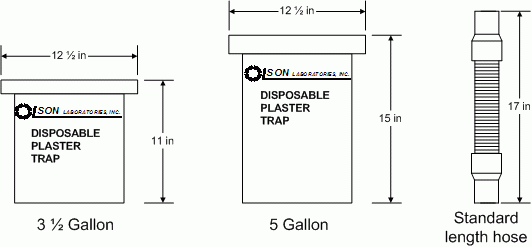

Below are the measurements of the Disposable Plaster Traps and Hoses

3.5gal = 11in high x 12.5in wide; 5gal = 15in high x 12.5in wide; std. len hose = 17in long tip-to-tip

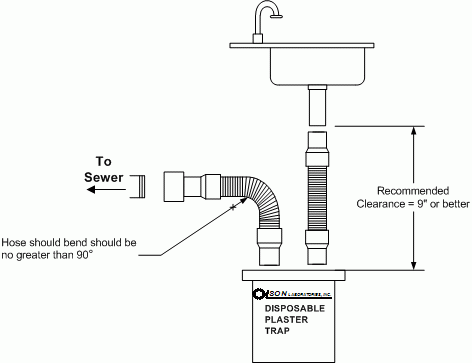

Below is the recommended installation for the Disposable Plaster Trap

9in clearance between bottom of sink tailpipe and top of trap; hoses should not be bent greater than 90 degrees
